Fathom® IWSv2-SYS-208
The IWS-SYS-208 is a In-Wall Powered Subwoofer System in the Fathom® line-up, offering 600 watts of power to drive its dual 8-inch active drivers, within two ported enclosures.
Fathom® IWSv2-SYS-208

Born from the same groundbreaking technologies used to develop JL Audio’s free-standing powered subwoofers, the Fathom® IWS in-wall subwoofer systems deliver remarkable bass performance, while remaining largely concealed within most home audio/theater environments.

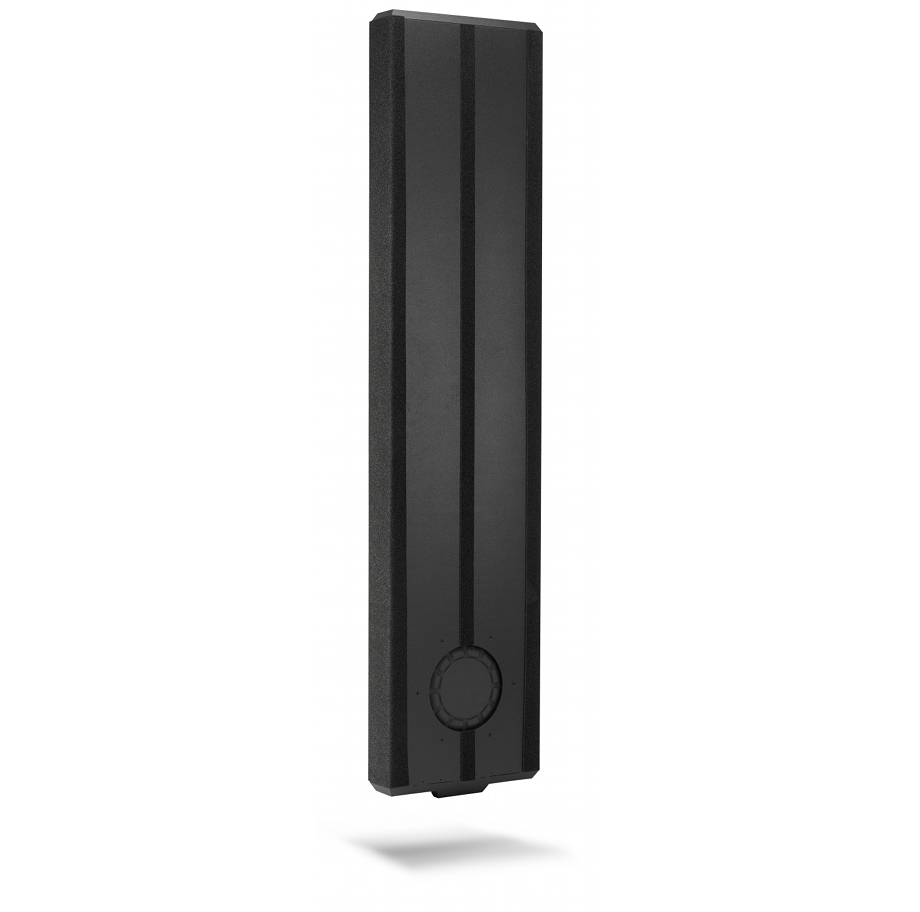

The 8-inch Fathom® IWS systems are smaller and easier to integrate than JL Audio’s larger in-wall Fathoms, fitting in all standard, 16-inch, on-centre stud openings, and operating through very small grilles. These grilles accommodate all common drywall thicknesses, and can be easily painted to match the wall.

The subwoofer enclosures utilise extensive architectural features aimed at improving rigidity while keeping a very low profile and minimal wall thickness. A unique port design vents through a slot located at the perimeter of the driver mount to enhance efficiency and low-bass output. Inside the enclosure is a long-excursion, 8-inch thin-line woofer, built to exacting standards by JL Audio for the Fathom® IWS products.

Each 8-inch Fathom® IWS system is powered by a rack-mountable amplifier, capable of generating up to 600 watts of clean power and can drive up to two enclosures. A complete set of Fathom® signal processing features is also onboard, including JL Audio’s powerful, 18-band Digital Automatic Room Optimisation (D.A.R.O.) system, all managed via an easy-to-use, menu-driven interface and LCD display. Note: D.A.R.O. functionality requires optional calibration microphone (sold separately).

The IWS-108 System fits 2" x 4" wall studs or larger. Consult your Authorised JL Audio Dealer for specific application information.

Enclosure Finish: Flat Black (hidden from view when installed)

Grille finish: Primer White (paintable)

Enclosure Construction: CNC-Cut Birch Plywood
